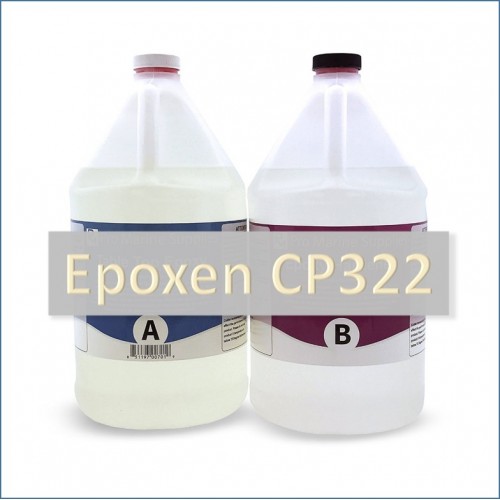

• Epoxen CP322 - Low Viscosity Infusion Epoxy System

CP322 is a good choice for many marine applications such as kayaks and small watercraft. The resin combined with the infusion technique will produce a light and strong hull.

This product can also work for wet lay up, however being designed for infusion, it has a lower viscosity than a typical laminating resin. This means it is likely to run off more compared to a typical laminating resin and will not build as thick coats as quickly.



Download Product Datasheets

Use the link below to download datasheets relating specifically to this product.



This high performance epoxy resin has been specifically formulated for use in resin infusion composites production. As an infusion epoxy it is ultra-low viscosity ensuring that is able to quickly infuse through a range of reinforcements. Its excellent mechanical strength makes it ideally suited for use with high performance reinforcements such as carbon fibre and aramids like Kevlar.

This is a high performance low viscosity epoxy resin formulated specifically for use in resin infusion composites production. The resin cures to a clear finish.


Pack Sizes

Epoxen CP322 is available in 2 different pack sizes:

  1. 2.7kg kit – one 2kg bottle Part A and one 0.7kg bottle Part B
  2. 13.5kg kit – two 5kg bottle Part A and one 3.5kg bottle Part B

Please choose the pack size required from the drop-down list at the top of the page.

For wholesale quantities, please contact us to discuss your requirements.

Resin Properties
Resin material Epoxy
Resin viscosity (25C) 700 - 900 cps
Resin color Transparent
Hardener Properties
Hardener material Amine
Hardener viscosity (25C) 10 - 20 cps
Hardener Color Transparent
Mixed System Properties
Mix ratio by weight resin/hardener 100 : 35
Viscosity (25C) 500 - 800 cps
Color Transparent
Working time / gel time (25°C) 5.5 hours
Tack-free time / basic cure time (25°C) 7 hours
Complete / post cure time (25°C) 20 hours
Tensile strength 60 - 75 MPa
Elongation at break 6 - 10 %
Hardness 75 D
Heat deflection temperature (HDT) 80 C
Water absorption < 0.5 wt %

Epoxen CP322 - Low Viscosity Infusion Epoxy System

  • Brand: Epoxen Epoxy
  • Product Code: CP322
  • Availability: In Stock
  • RM150.00


Available Options
